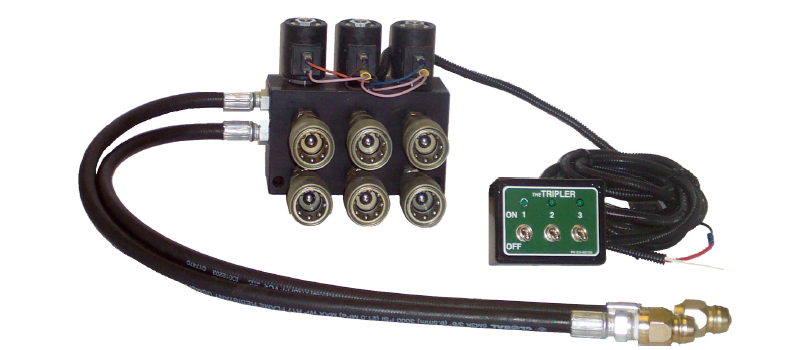

The "Tripler" - Hydraulic Splitter

Screen Shot 2016-12-29 at 10.29.53 AM.png
Screen Shot 2016-12-29 at 10.29.53 AM.png

The "Tripler" - Hydraulic Splitter

from 560.00

Saves time by flipping a switch instead of having to stop and switch hydraulic hoses. Cheaper than adding 2-additional spools to the tractor. The speed and direction of the hydraulic flow is still controlled with your tractor hydraulic lever. Works on single or double acting cylinders, hydraulic orbit motors and many other hydraulic applications. Can be switched from tractor to tractor or any other implement requiring additional hydraulic outlets.



Configuration Option:
Quantity:
Add To Cart

Available with ISO; Old Style JD, Big IH; or less couplers, fittings & hoses. Can be installed directly on the implement to control 3-hydraulic functions w/ the flip of 3-switches. Standard Control Box has 6’ battery leads, and 8” coil leads.

SPECIFICATIONS:
• OPERATING PRESSURE: TO 3000 PSI
• RATED FLOW: 7 GPM
• OPERATING TEMPERATURE: -400 C TO 1200 C W/BUNA-N SEALS
• CARTRIDGE VALVE COIL VOLTAGE: +12 VDC @ 6 AMPS (FOR ALL COILS)
• *MUST BE CONNECTED TO A SWITCHED, FUSED POWER SOURCE
• OVERALL WEIGHT: 17 LBS.
• DIMENSIONS: 6” W X6 1/2” H X7” L
