Renegade - Extended Duty Hydraulic Cylinders

from 799.00

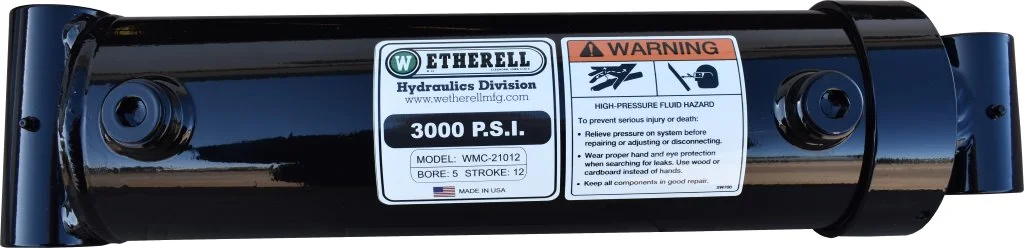

Wetherell Mfg Co Proudly introduces the new Renegade line of Extended Duty welded hydraulic cylinders. These heavy duty cylinders  are in stock and ready to go to work for you!

    Model:
    Quantity:
    Add To Cart

    Standard features include

    • Heavy duty welded construction
    • 3000 psi rating
    • 5” standard bore size
    • 8” thru 60” stroke length
    • Screw on head gland cap
    • Chromed and polished 2.5” piston rod
    • ¼” wall finish honed tubing
    • Cross tubes fitted with grease zerks
    • U cup, crown seal, wear guide
    • Aluminum gland and piston with wear guide
    • Black poly urethane finish

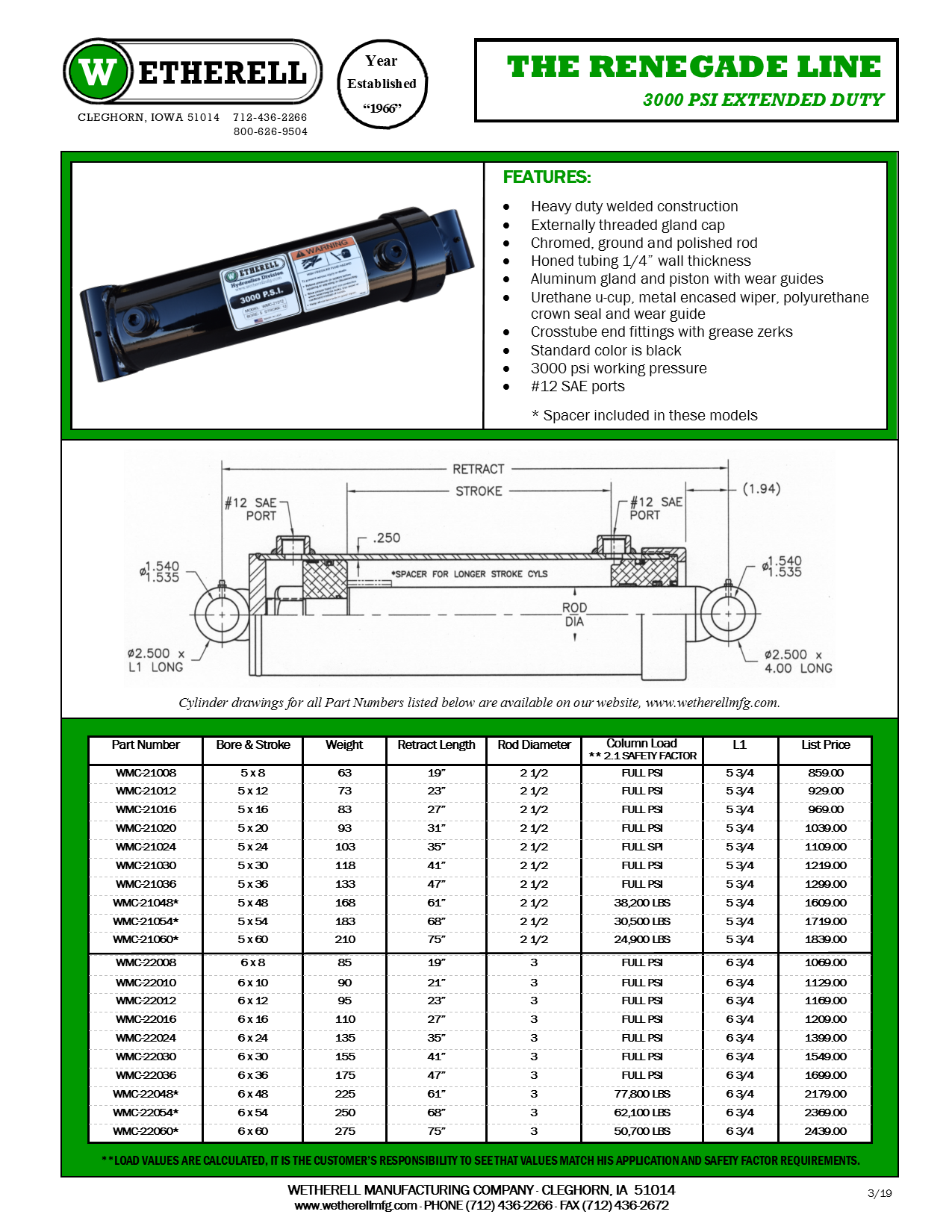

    WMC-21008      $799.00

    Size: 5x8   |    Weight: 63lbs   |   PDF Drawing


    WMC-21012      $849.00

    Size: 5x12   |    Weight: 73lbs   |   PDF Drawing


    WMC-21016      $899.00

    Size: 5x16   |    Weight: 78lbs   |   PDF Drawing


    WMC-21020      $949.00

    Size: 5x20   |    Weight: 93lbs   |   PDF Drawing


    WMC-21024      $1039.00

    Size: 5x24   |    Weight: 103lbs   |   PDF Drawing


    WMC-21030      $1139.00

    Size: 5x30   |    Weight: 118lbs   |   PDF Drawing


    WMC-21036      $1199.00

    Size: 5x36   |    Weight: 133lbs   |   PDF Drawing


    WMC-21048      $1489.00

    Size: 5x48   |    Weight: 168lbs   |    Spacer Included    |   PDF Drawing


    WMC-21054      $1599.00

    Size: 5x54   |    Weight: 183lbs   |    Spacer Included    |   PDF Drawing


    WMC-21060      $1689.00

    Size: 5x60   |    Weight: 203lbs   |    Spacer Included    |    PDF Drawing
