Hydra-Power Top Link

742.00

The HYDRA-POWER TOP LINK is a 3 1/2” bore X 7” stroke hydraulic cylinder with load holding valves built in. The TOP LINK allows you to eliminate the top 3-point turnbuckle to fully utilize your quick hitch, or your tractors top 3-point with this labor saving tool.

Note: See specifications and hardware included.

Quantity:
Add To Cart

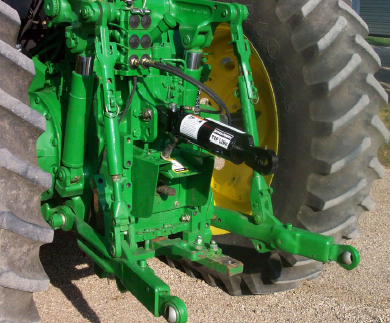

Features of the WETHERELL TOP LINK include: Ability to tilt your quick hitch back and forth from the tractor cab when hooking up to unleveled implements. Increase or decrease implement angle when cultivating, as soil type varies from one end of the field to the other. The TOP LINK hydraulically locks cylinder in place with the check & counter balance valve, designed to avoid drifting in or out even in the event of a ruptured hydraulic hose. Make adjustments ON THE GO with easy to read ruler type cylinder stroke gauge for accurate adjustment from the tractor seat.

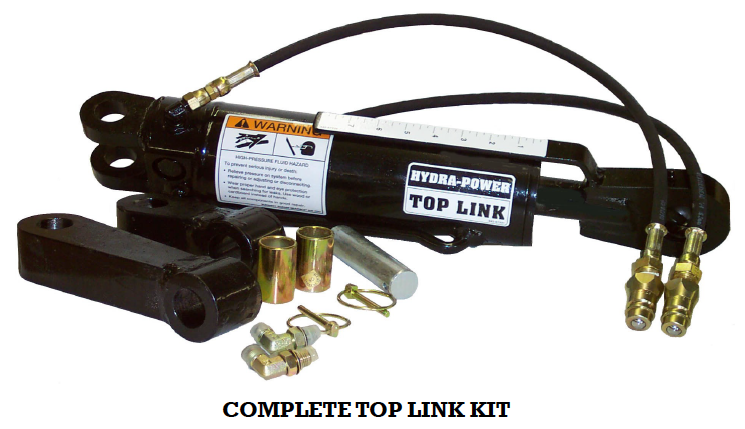

INCLUDES
Hydraulic Cylinder with Load Holding Valves
Heavy Duty Cat. III Swivel socket w/grease zerk
(2) Cat. III to Cat. II bushings
(2) Hydraulic hoses w/ISO tips, and 90˚ O-ring fittings
(1) 3-5/8” Spacer Bar and (1) 6-3/4” Spacer Bar

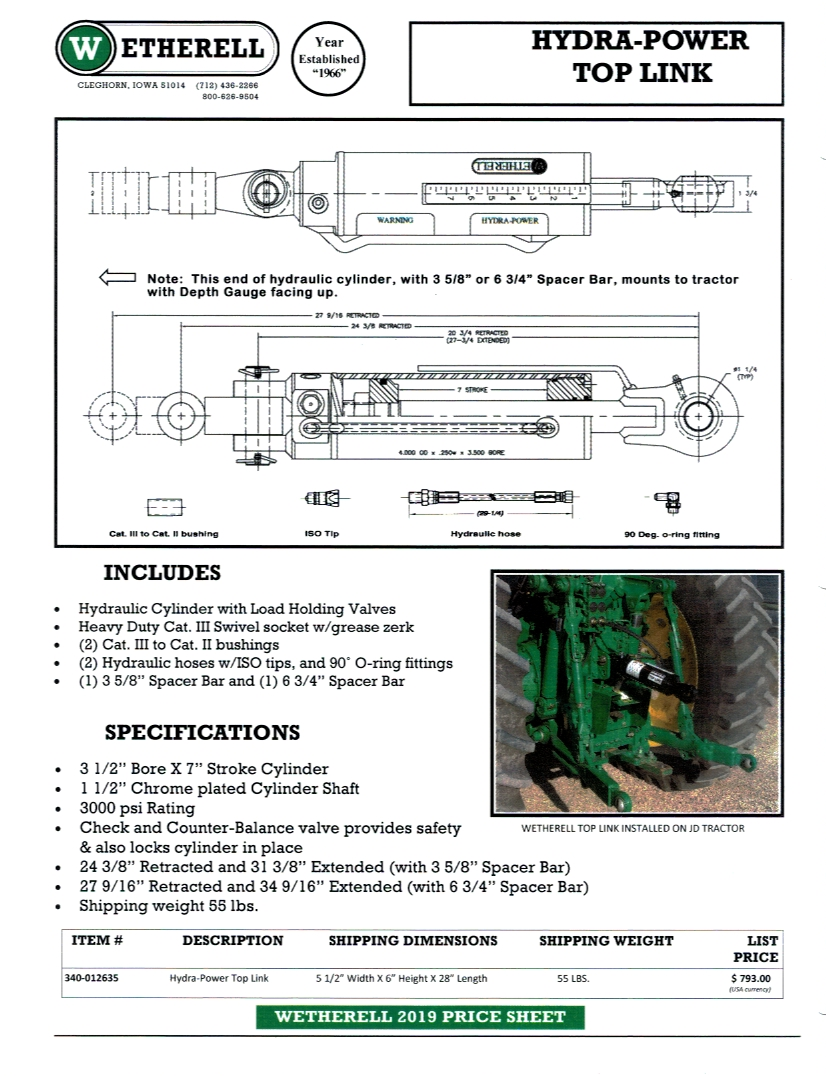

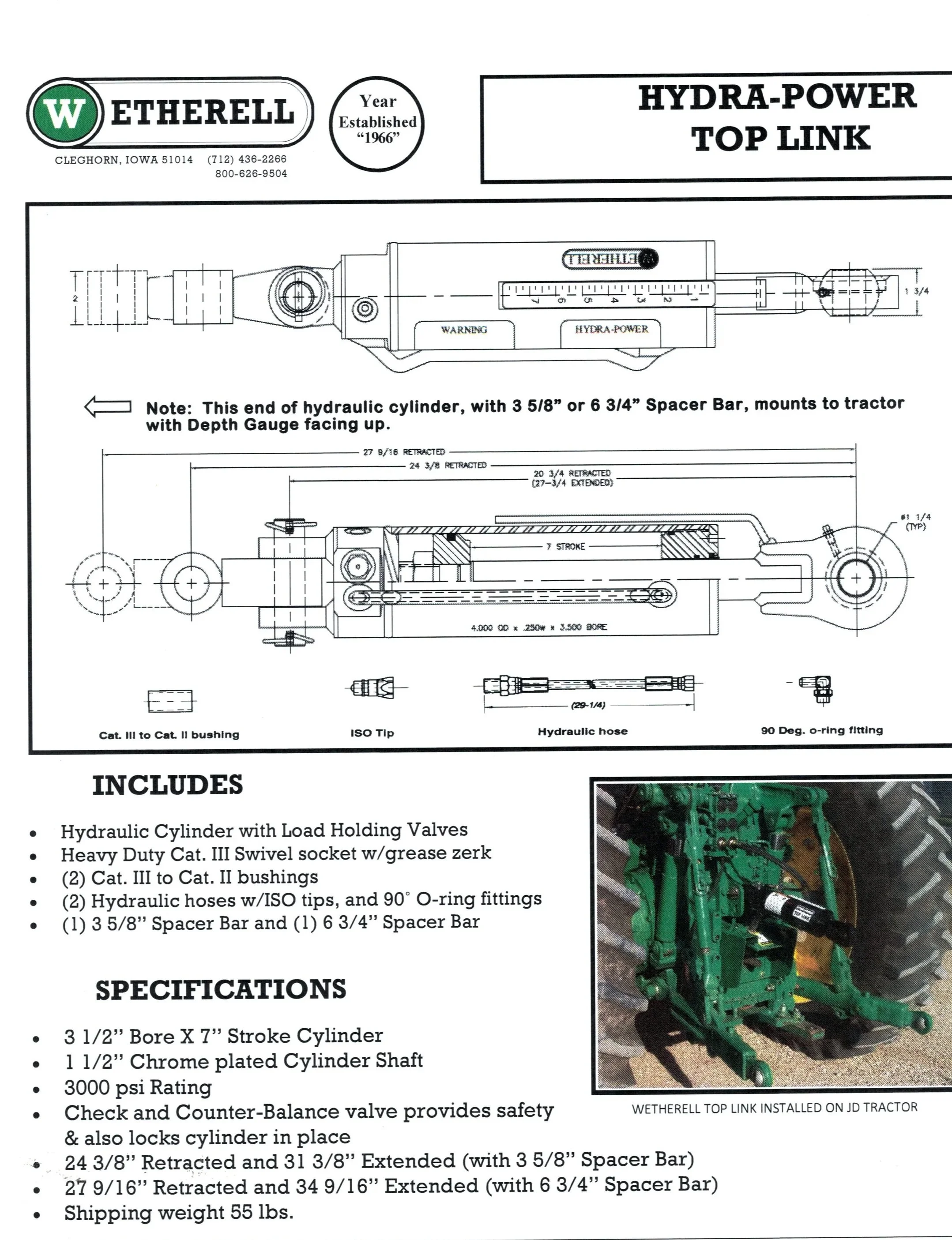

SPECIFICATIONS
3 1/2” Bore X 7” Stroke Cylinder
1 1/2” Chrome plated Cylinder Shaft
3000 psi Rating
Check and Counter-Balance valve provides safety & also locks cylinder in place

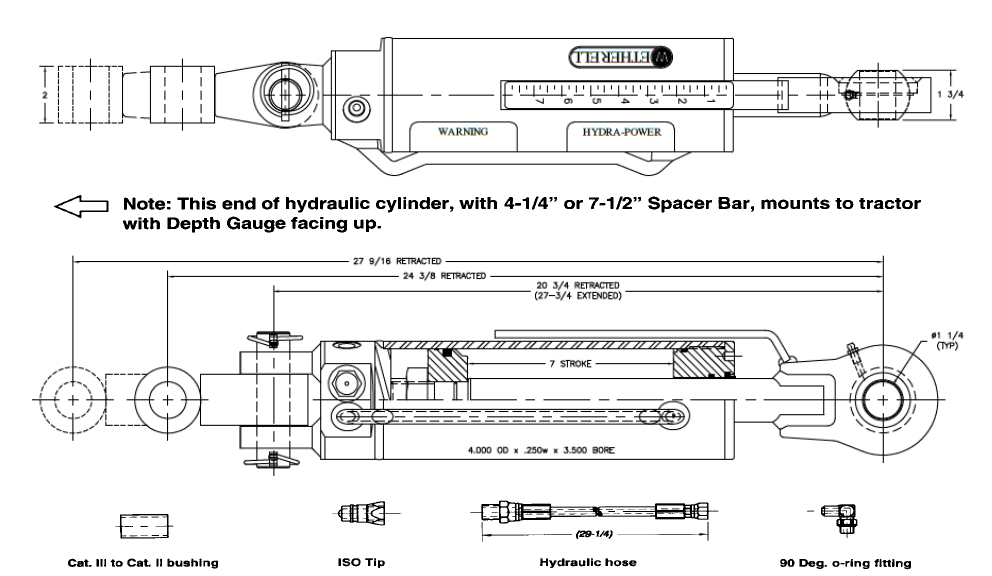

24-3/8” Retracted and 31-3/8” Extended (with 3-5/8” Spacer Bar)
27-9/16” Retracted and 34-9/16” Extended (with 6-3/4” Spacer Bar)
Shipping weight 55 lbs.
